Float density polyethylene

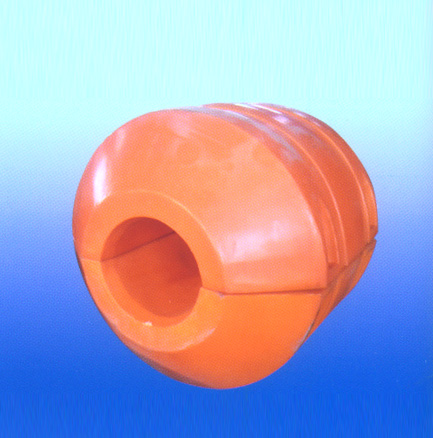

Medium density polyethylene floating body is my company's new product, the product housing is made of medium density polyethylene excellent toughness, high strength polyurethane foam filled. Reasonable structure, excellent performance. Water floating material as mud tubes become traditional steel pontoon alternative.
Product Features:
     1 toughness, excellent impact resistance, especially for offshore construction.
     2 light weight, easy installation and removal, transfer of low transportation costs.
     3 abrasion resistance and long life.
     4 low price, cost significantly better than steel pontoons.
Note:
     1 floating body 2 is a group (a two-piece composition) may lose mud float tube 6 Mega hose 1.5 m;
     2 OD 4 m X length 4 meters below the variety of the floating body can produce.
Main Specifications Sheet floating body

Project	Shell performance indicators	Project	Internal performance indicators
Tensile strength	≥13.1MPa	Water absorption	1-2g/100cm2
Elongation	≥11.1%	Breaking strength	0.08-0.1MPa
Impact strength	≥32.1KJ/m2	Elongation	4-6%
Bending Strength	≥15.7MPa	Compressive strength	0.1-0.24MPa

Ship	Lose soil pipe inside diameter	Outside diameter of the floating body	Floating body diameter	Floating body length
200m3/H	Φ400-420	Φ1310	Φ430	1335
350m3/H	Φ550-560	Φ1300	Φ576	1400
Beaver1600	Φ500	Φ1370	Φ522	1400
Beaver3800	Φ650	Φ1500	Φ680	1800
Beaver4600	Φ700	Φ1530	Φ730	1840
8000絞	Φ800	Φ1780	Φ840	2000
5000m3/H	Φ900	Φ2100	Φ950	2300
